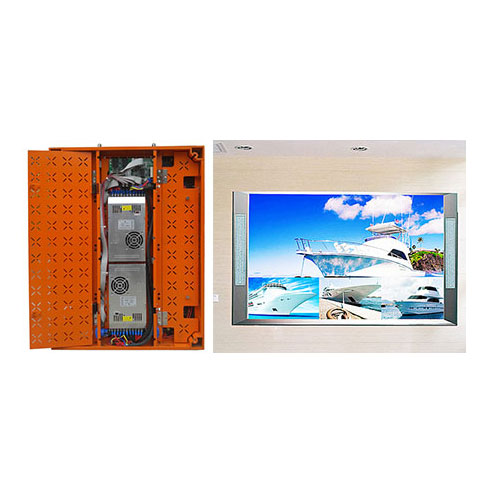

P2.5 full color LED display

-P2.5 full color LED display

Scan WeChat QR code
to learn more

Parameters

Demonstration

Download

P2.5-16S indoor LED display main technical parameters
Physical point spacing 2.5 mm	Unit board size 160X80 mm	Unit box size 480 × 640 × 64 (mm)
Physical density of 160000 points / ㎡	Luminous spot color 1R1G1B	Unit board resolution 64 * 32 = 2048DOTS
Unit plate weight 0.12kg
Box resolution 192 * 256v	Box area 0.3072m²	Profile aluminum box weight 9.61KG ± 0.05KG
主要技术参数
The best viewing distance of 2.5m ~ 50m	Visual angle level ≧ 160 ° optional	Vertical ≥ 160 ° optional
Average power consumption <1000w / ㎡	Maximum power consumption <2600w / ㎡	Control mode: synchronous control
Display card DVI graphics card	Drive mode 1/16 scan	Change frequency ≧ 60Hz
Refresh frequency ≧ 300Hz	White balance brightness ≧ 2000cd / ㎡	Operating voltage (AC)
Brightness adjustment mode	Brightness sensor automatically adjust	16 adjustable
Software manual adjustment: 100 adjustable 100
Computer operating system
WIN98、WINXP、WIN2000,etc
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc.
Control System
PCTV card (optional) + DVI graphics card + main control card + fiber transmission (optional)
Mean time between failures ≧ 5000 hours	Life 75000 ~ 10000 hours	Pixel out of control <0.0002 pieces
Item Classification PH2.5-16S	Package in triplicate	LED package way 2121
