Details description

● Use UHF500-980MHz frequency band (set at the factory);

● Digital audio transmission technology, 16-bit digital ID code technology to eliminate cross-talk interference;

● Intelligent encryption technology that provides excellent sound quality and RF performance;

● Automatic frequency sweeping, infrared automatic frequency matching function, more convenient operation;

● Color TFT display, novel spectrum display technology, more fashionable;

● Intelligent mute, greatly saves energy and prevents accidental operation of popping sound, and extremely wide frequency response, so that the singer can sing more freely;

● The handheld microphone is powered by a lithium battery, and the charging design provides longer battery life;

● Suitable for large KTV rooms, stage and engineering stacking machines.

technical parameter

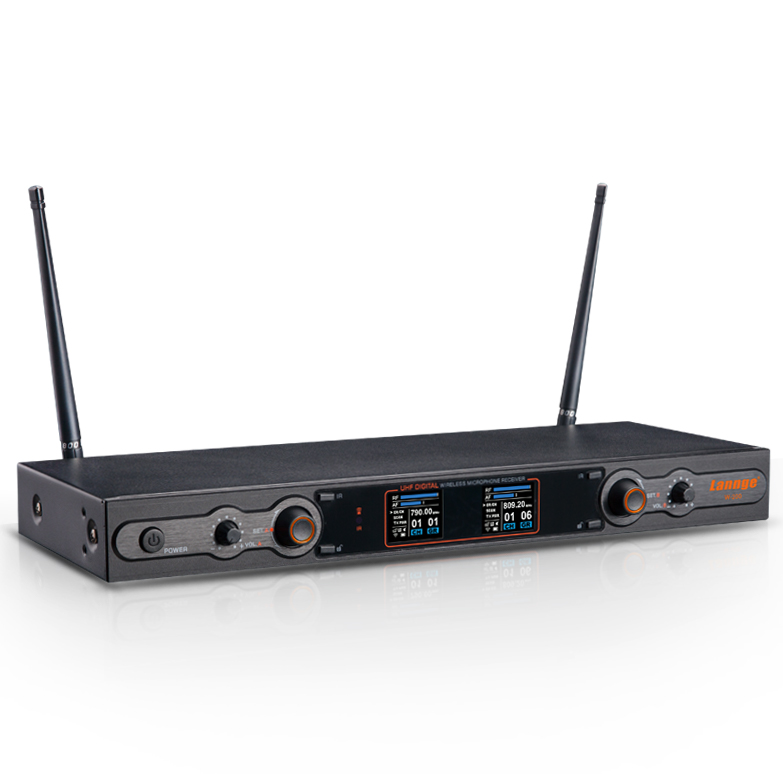

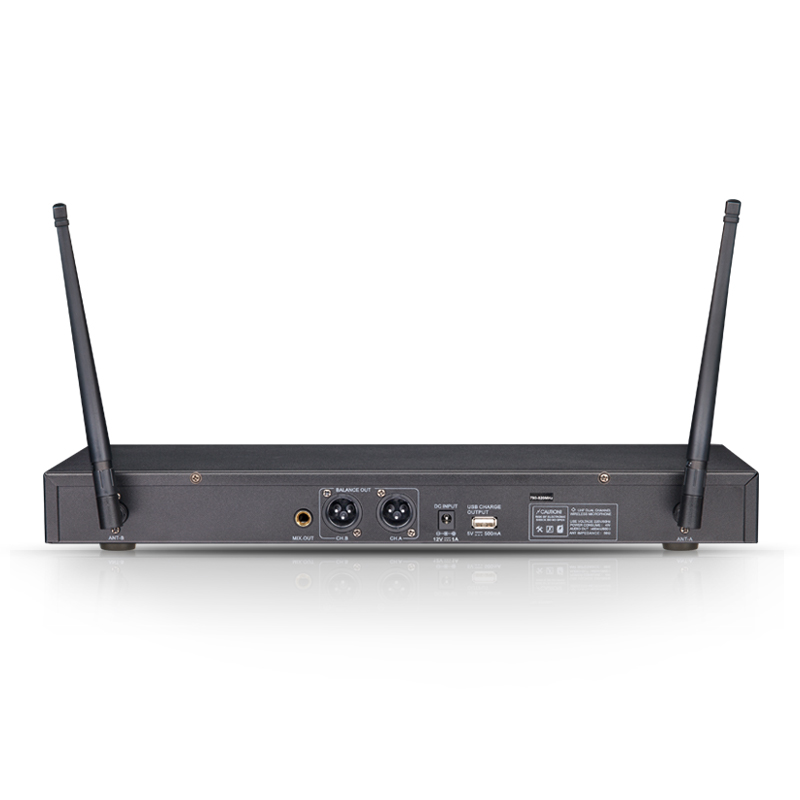

● Receiver parameters

Carrier frequency band: UHF500-980MHz optional

Bandwidth: 30MHz

Channel occupied bandwidth: 300KHz

Number of preset groups: 15 groups, each group presets 6 frequencies

Dynamic range: 96dB

Distortion: <0.1%

Frequency response: 30-20KHz ±2dB

Signal to noise ratio: 96dB

Receive sensitivity: -95dBm

Transmission delay: <3ms

Power supply: DC12V 1A

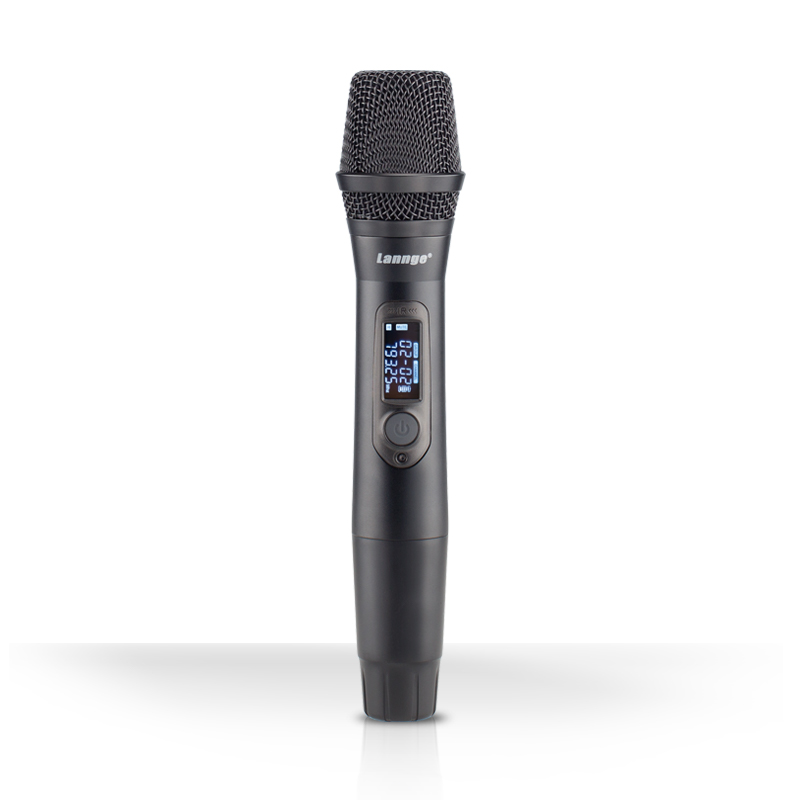

● Handheld microphone parameters

Carrier frequency band: UHF500-980MHz optional

Bandwidth: 30MHz

Frequency switching: infrared synchronization

Output power: 10mW

Harmonic radiation: <-50 dBc

Use battery: 18500 lithium battery section

Battery life: >8h
