Details description

● UHF custom frequency band can be preset (range: 600-999MHz);

● True diversity receiving circuit design to ensure effective distance and eliminate dead ends;

● Adopt advanced digital pilot technology, multiple sets of wireless microphone systems can be used simultaneously without mutual interference; automatic frequency sweep, infrared automatic frequency matching function;

● Adopt phase-locked loop frequency stabilization system with 240 selected channels and 600 freely selectable frequency points;

● The transmit power of the handheld microphone can be adjusted;

● Receiver LCD display, novel spectrum display technology, more fashionable; handheld microphone adopts OLED display, the color is more noble and generous;

● Standard 19-inch installation size, ideal effective distance of 80 meters;

● Especially suitable for large KTV rooms, stage and engineering stacking machines.

technical parameter

● Comprehensive performance

Carrier frequency: UHF600-999MHz

Frequency stability: <±30ppm

Dynamic range: >90dB

Harmonic distortion: <0.5%

Audio output: 400mV

Frequency induction: 40Hz 15KHz ± 3dB

Hybrid: 400mV

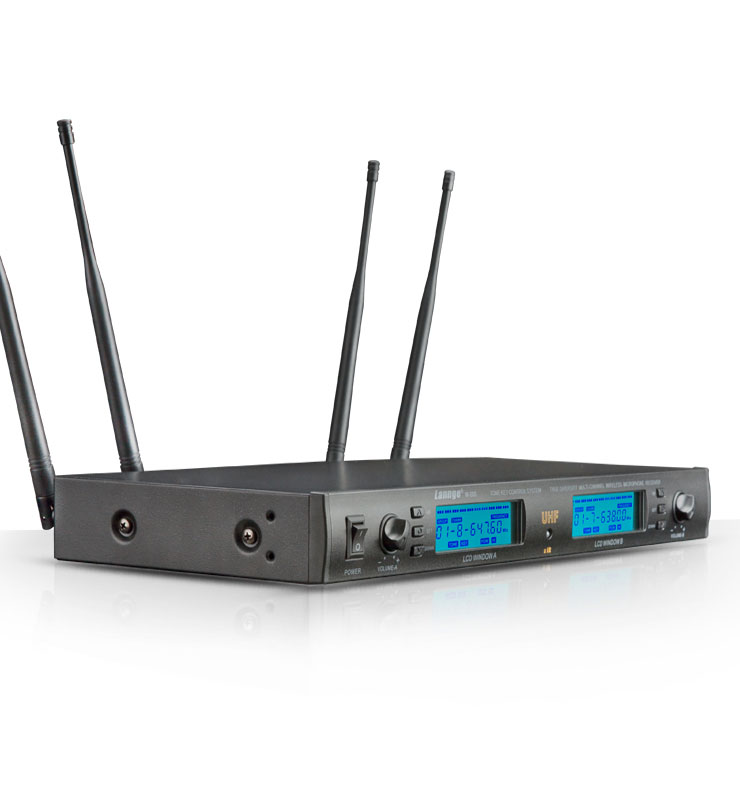

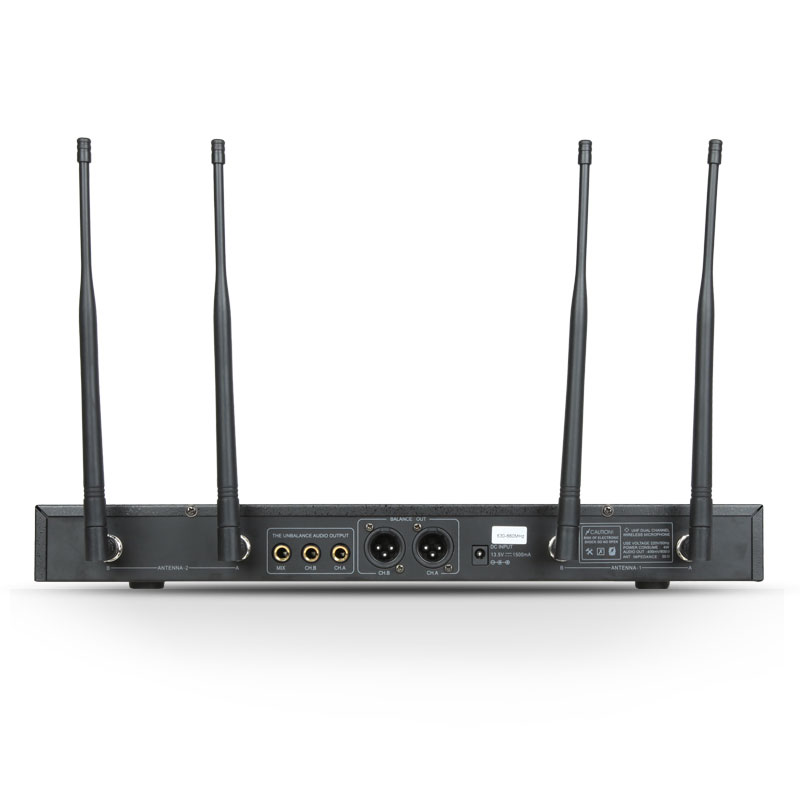

● Fixed receiver

Use the power adapter voltage: DC13.5V 1500mA

Power consumption: 6W

Signal to noise ratio: >90dB

False interference ratio: >100dB

Adjacent channel interference ratio: >80dB

Receive sensitivity: >17dBuv (SINAD=40dB)

To increase: 50uS

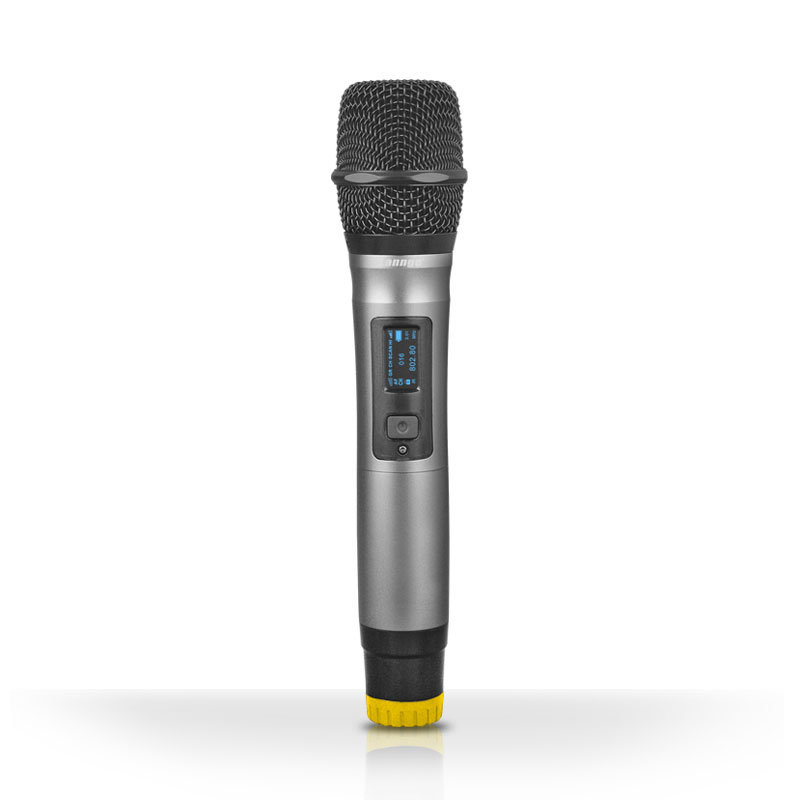

● Wireless handheld microphone

Transmit power: 30mw (max)

Modulation method: FM

Maximum modulation: ±40KHz

Higher harmonics: 40dB or more below the main wave reference

Use the power supply voltage: 2 1.5V AA batteries

Continuous use time: 5 hours

● Wireless waist microphone

Transmit power: 30mw

Modulation method: FM

Maximum modulation: ±25KHz

Higher harmonics: 40dB or more below the main wave reference

Use the power supply voltage: 2 1.5V AA batteries

Continuous use time: 5 hours
