Details description

● 2 groups of music and 3 microphone inputs;

● Exposed knob adjustment, easy to operate, easy to use;

● One-key switching of audio input, minimum signal loss, high-fidelity sound quality and K-song sound effects;

● Classic enthusiast grade circuit design, wider frequency response;

● Using advanced digital reverberation chips, vocal performance is better;

● Suitable for home theater, KTV rooms and conference rooms.

technical parameter

● Signal to noise ratio: MIC>80dB/MUSIC>100dB

● Total harmonic distortion + noise: MIC<0.1% /MUSIC<0.05%

● Maximum input level: MIC: 500mV RMS /MUSIC: 2V RMS

● Maximum output level: MIC: 3V RMS /MUSIC: 5V RMS

● Dynamic range: MIC>80dB /MUSIC>110dB

● Input interface: 2 ways for dynamic MIC input, 1 way for condenser MIC input, MUSIC: 2 waysRCA

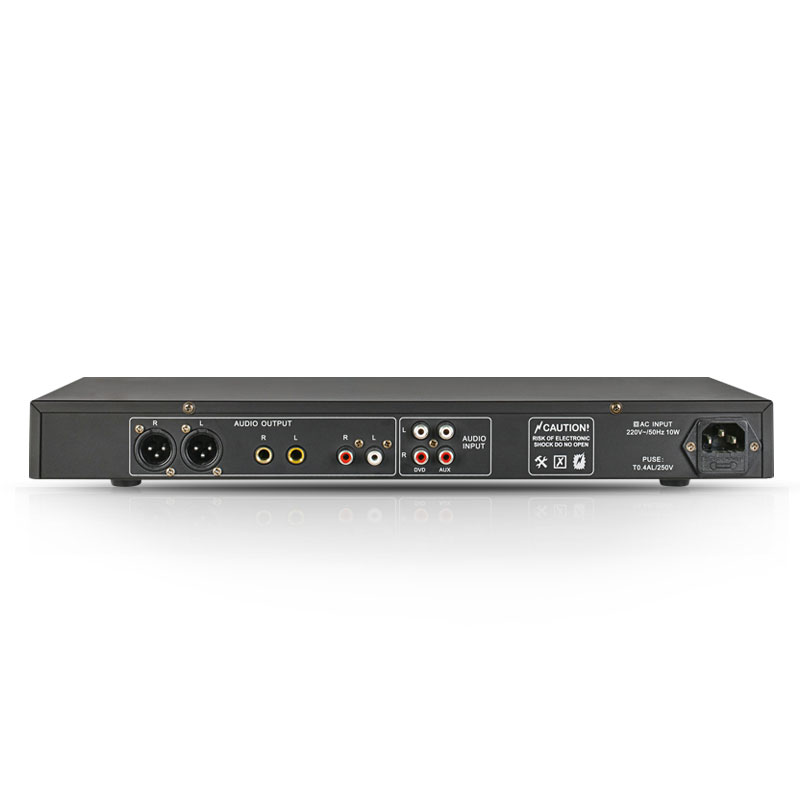

● Output interface: Balance: 1 way for XLR / Unbalance: 1way for 6.35, 1 way for RCA

● Tone: MIC/MUSIC BASS, TREBLE

● Delay time: <200ms MAX

● Resolution: >90dB

● Power supply voltage: AC220V / 50Hz ±10%
