Details description

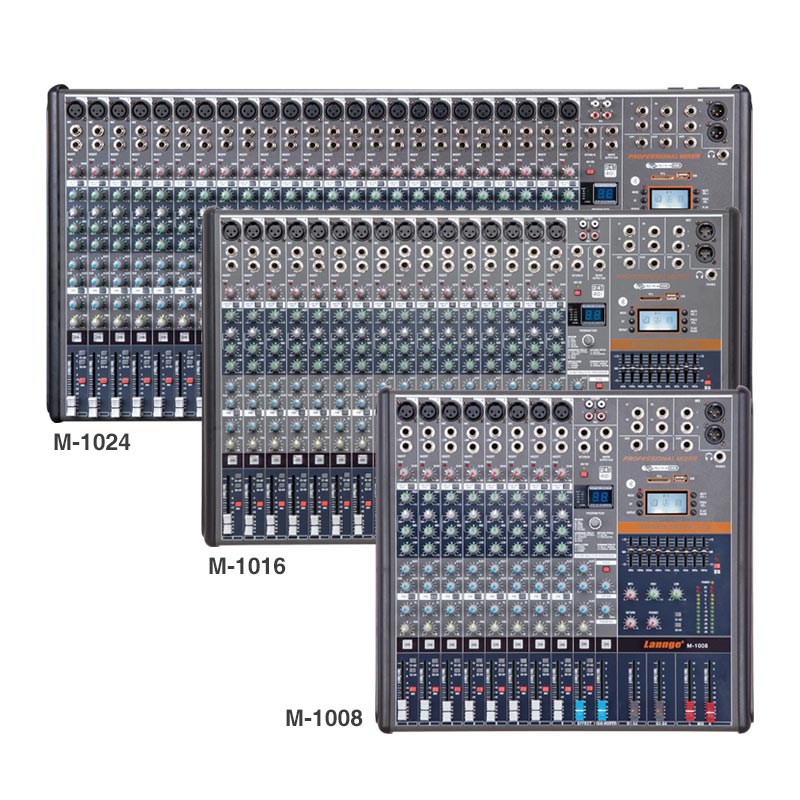

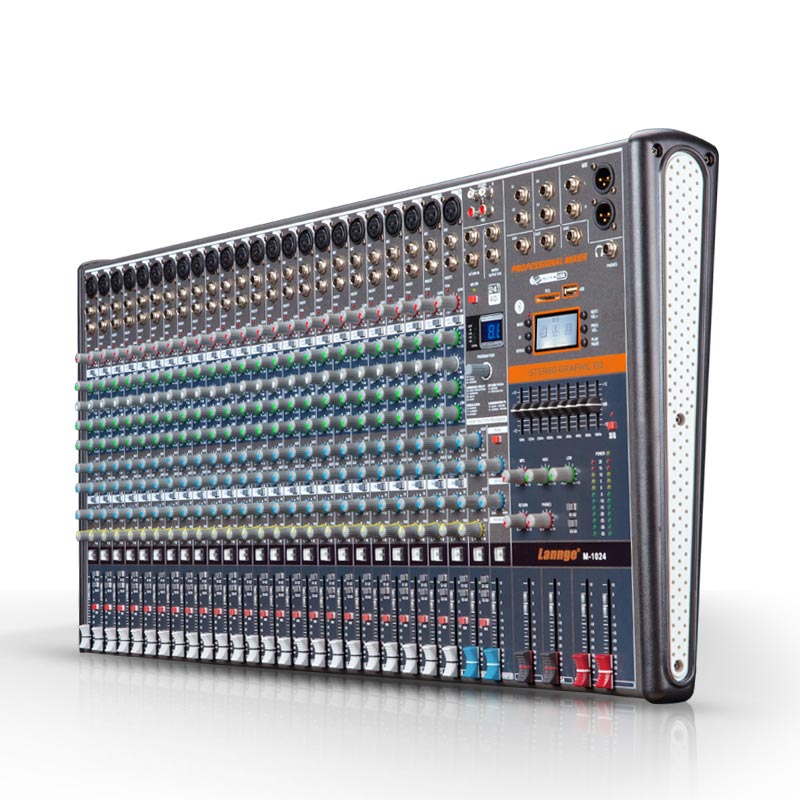

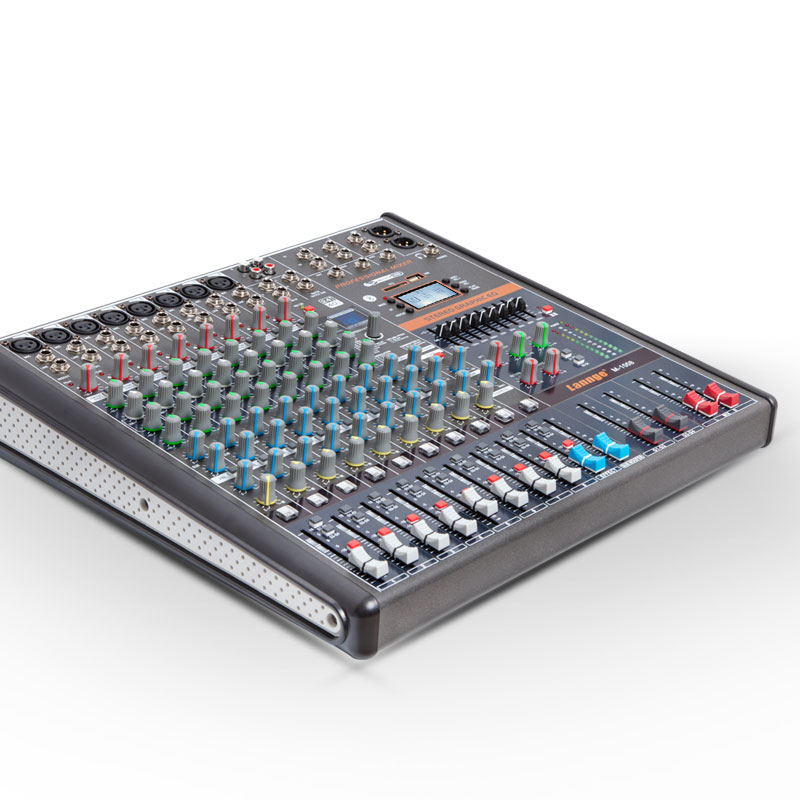

● 8/16/24 channel mono input, 3 segments of EQ+MF per channel;

● High performance microphone amplifier with +48V phantom power supply;

● 6 sets of busbars (stereo + 4 groups), three channels of AUX transmission, one channel of stereo return;

● 9-segment stereo equalization adjustment, high-precision three-color display output level;

● High analysis degree 60mm stroke pusher potentiometer;

● Built-in squelch switching power supply;

● 24-400Hz adjustable subwoofer channel output;

● Built-in DSP chip (99 professional benchmark effects) with mode display light;

● Built-in MP3 module, Bluetooth receiving, SD card socket, USB input, automatic recognition and playback of MP3 music;

● Adopt SMT chip process, the performance is more stable and reliable;

● Suitable for stage performances, bars, KTV rooms and large conference halls.

technical parameter

● Frequency response: 20Hz-20KHz (±0.5dB)

● Total harmonic distortion: <0.007% (-30dB input to mix, mic gain 30dB)

● Microphone input equivalent input noise: -128dB (MIC EIN@Max gain, 150 ohms source impedance)

● Bus noise: Noise (20Hz-20KHz measurement bandwidth)

● Mixing: MIX@MAX faders down<-85dB)

● Separation degree of each channel: >96dB

● CROSSOVER fader position: >96dB

● Auxiliary send port: >86dB

● Output level meter: L/R mix output level is 12 segment of LED indicator

● Size: 440x400x86mm
