Details description

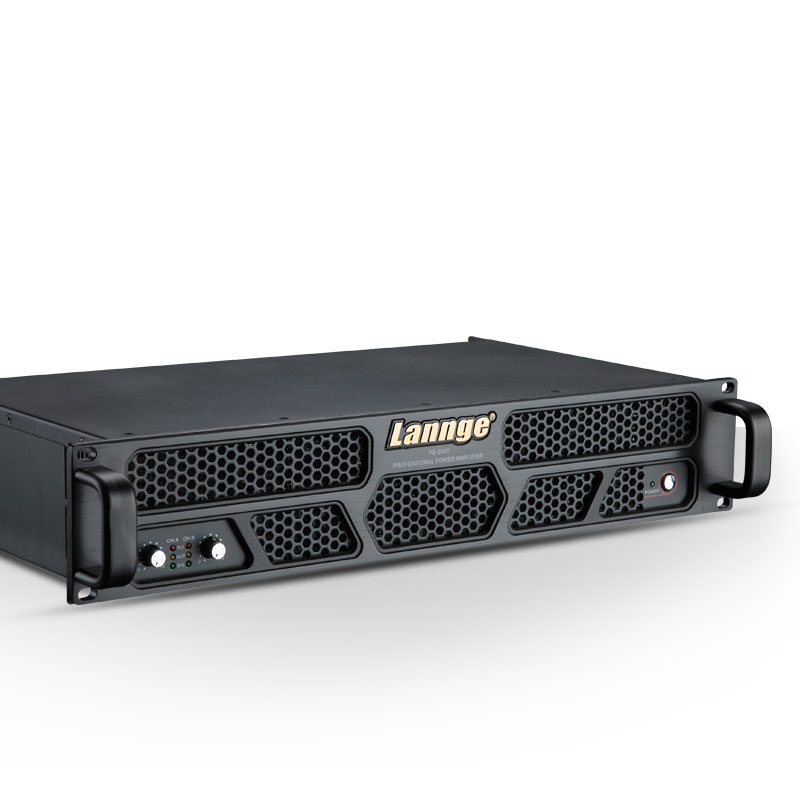

● The drawing process of aluminum alloy panel is fashionable and beautiful;

● The thick steel plate chassis is firm and stable, and it is more effective in shielding external electromagnetic interference;

● Multiple powerful protection mechanisms, including thermal protection, short circuit protection, and switch delay protection;

● Powerful output capability, low frequency, strong and medium frequency, round and sweet mid-frequency, high-frequency clear and delicate;

● Class H topology of multi-level power supply mode, lower power loss and higher electro-acoustic conversion efficiency;

● Optimized switching power supply design, lighter in size and lighter to install;

● High-quality terminal blocks make the connection stronger and ensure high-quality signal transmission;

● Suitable for large-scale stage performances, bars, KTV rooms and large conference halls.

technical parameter

                                          PS-2800 PS-2102 PS-2132

● Rated output power Stereo: 800W*2/8Ω 1000W*2/8Ω 1300W*2/8Ω

                                   1200W*2/4Ω 1650W*2/4Ω 2100W*2/4Ω

● Bridge: 2400W/8Ω 3350W/8Ω 4350W/8Ω

● Voltage gain: 35dB 36dB 38dB

● Frequency response: 20Hz-20KHz (±1dB)

● Total harmonic distortion: <0.55% 20Hz-20KHz

● Conversion rate: >10V/μs

● Amplifier topology type: Class H

● Damping coefficient: >200

● Signal to noise ratio: >100dB

● Input sensitivity: 0.775V or 1.4V

● Input impedance: Balance 20KΩ / Unbalanced 10KΩ

● Input connector: Balanced XLR, unbalanced RCA

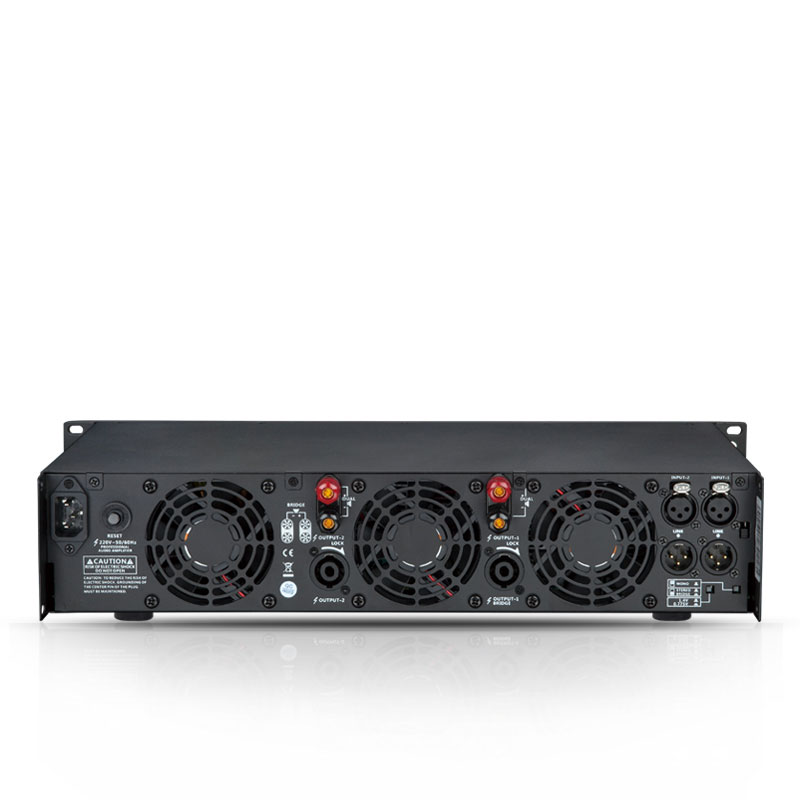

● Output connector: two red and black binding posts, NL4 socket

● Protection: short circuit protection, no load, on/off noise, radio interference protection circuit

● Input voltage: AC 220V/50Hz ±10%
