Details description

● Professional KTV speaker system, better vocals;

● Stylish and generous horizontal lifting structure box;

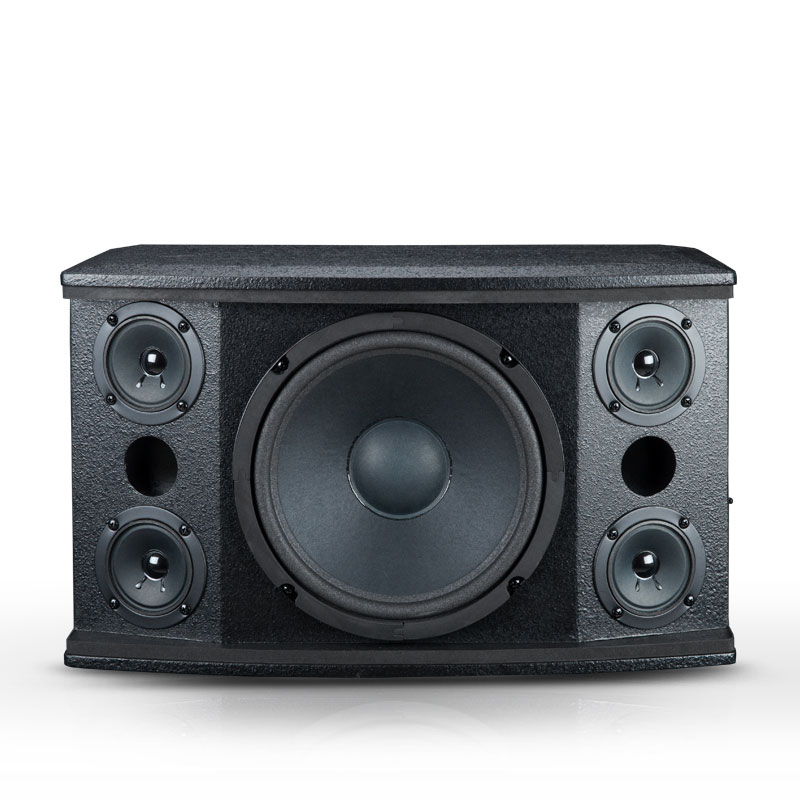

● Five-unit combination: 10-inch bass with dual 3-inch midrange and double 3-inch treble;

● Wide frequency response range: 76Hz-18kHz (+-3dB);

● Direct sound coverage of 120 degrees in the horizontal direction and 110 degrees in the vertical direction;

● Highly optimized three-way circuit for smooth sound connection;

● The inverted structure allows the sound energy to emerge;

● Suitable for bars, KTV rooms and small meeting rooms.

Technical parameter

Electroacoustic parameters

Frequency response: 65Hz-18KHz (+-3dB)

Sensitivity: 95dB

Maximum sound pressure: 110dB

Impedance: 8Ω

Rated power: 200W

Peak power: 400W

Physical parameter

System form: three-way single 10 inch karaoke speaker

Box structure: front box type

Treble unit: 2*3" paper cone, 13mm voice coil

Alto unit: 2*3" paper cone, 13mm voice coil

Woof unit: 1*10" paper cone, 120 magnetic, 35mm voice coil

Box material: 15mm thick high density MDF, environmentally friendly water-based black paint

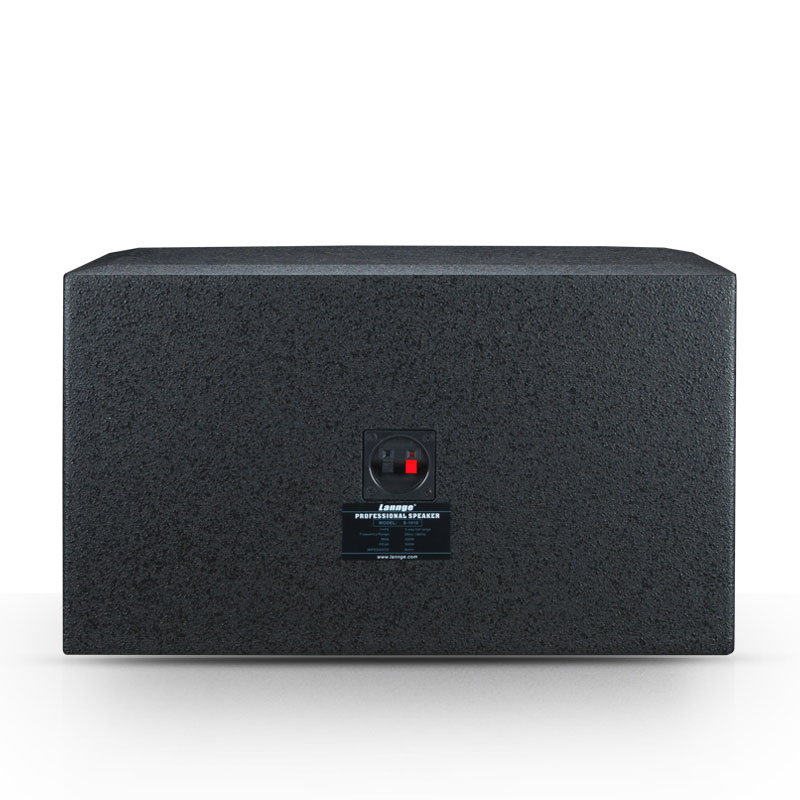

Connection method: Terminal

Installation method: horizontal placement and horizontal lifting

Speaker size (single): 527*290*316mm

Net amount (single): 12kg
