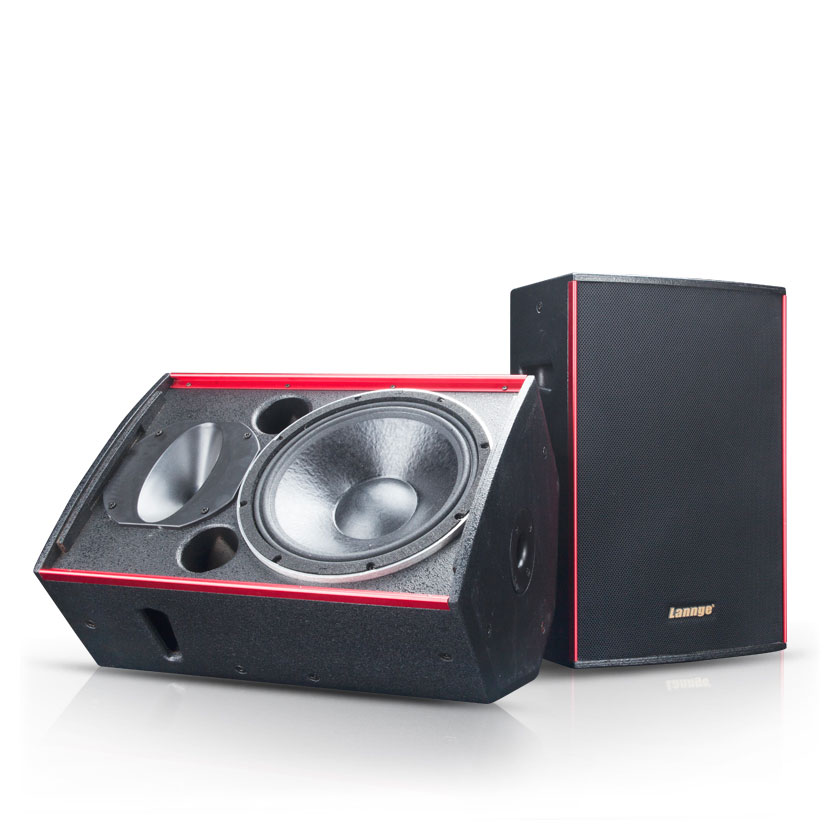

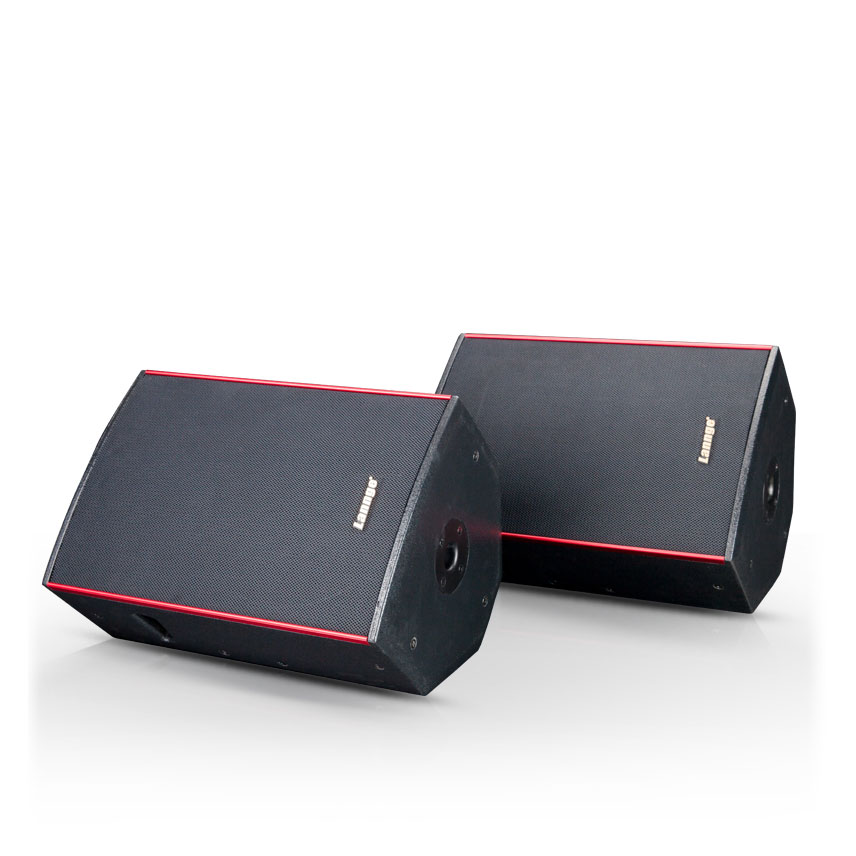

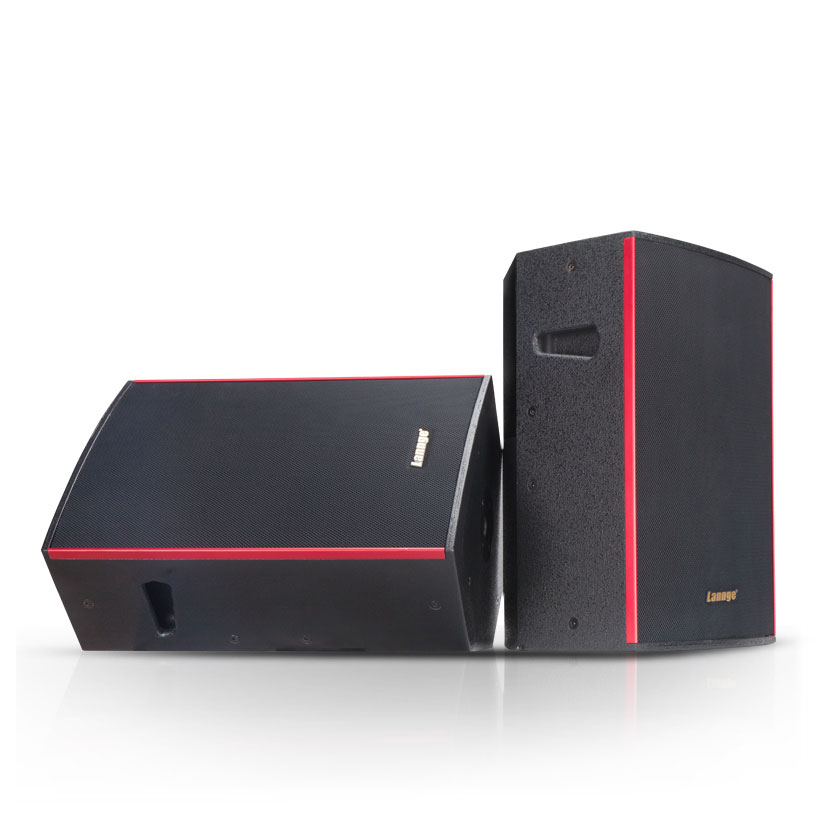

Details description

● The cabinet is made of 15 mm high environmental protection splint, and the surface is treated with black abrasion resistant paint;

● 80° x 50° coverage with uniform and smooth axial and off-axis response;

● Appearance avant-garde, solid steel protective iron mesh;

● Precisely designed crossover for smoother sound connection;

● Rotatable lifting position for vertical or horizontal installation;

● Equipped with two Neutrik NL4 sockets for connection to other devices;

● Mainly used in KTV rooms, nightclubs, hotels, clubs and other entertainment venues, can be used with ultra-low frequency speakers.

Technical parameter

Electroacoustic parameters

Frequency response: 45Hz-20KHz (+-3dB)

Sensitivity: 98dB

Maximum sound pressure: 126dB

Impedance: 8 Ω

Rated power: 400W

Peak power: 1600W

Pointing angle: H: 80° / V: 50° (-6dB)

Physical parameter

System form: 2-way full range speaker

Box structure: front box type

Treble unit: 1 diameter 34mm ferrite magnet unit, 1.4" voice coil

Woofer: 1 12-inch woofer, 3" 75-core voice coil, 190 magnetic 12" ferrite magnet

Box material: 15mm birch / surface wear-resistant water-based paint

Connection method: 2 x NL4 socket

Installation method: vertical or horizontal

Speaker size (single): 552x370x335mm

Net weight (single): 17.5Kg
